| Features: |
 |
64-step control |
|
Color temperature detecting |
|
Alarm of light quantity |
|
Irradiation zone is available to choose by choosing the customized Rod lens. |
|
The largest size of Irradiation zone is 1200×1200 mm. |
|
Major light source is white light, and there has 4 color filters(include yellow, red, green, blue ) for your option. |
|
Use with handheld light guide to modulate irradiation distance, zone and position. |
| MODEL NAME |
Specification |
| Lamp Discharge |
DC discharge |
| Appied Lamp |
Metal Halide Lamp |
| Initial Light Quantity |
6,000 Lm |
| Lamp Life |
1,500 Hours |
| Color Temperature |
7,000 K |
| PowerSupply |
AC110V、AC220V 50／60Hz |
| Power Consumption |
About 450W |
| Hour Indicator |
Hour Indicator |
| Light Control Mechanism |
Light Control Mechanism |
| Light Control Mode |
Manual Control or Remote Control |
| Shutter Function |
-------------------- |
| Filter |
White, Green, Red, Yellow 4 types |
| Remote Control |
Rear Panel D-sub 25Pin |
| Error Signal |
Rear Panel D-sub 9Pin |

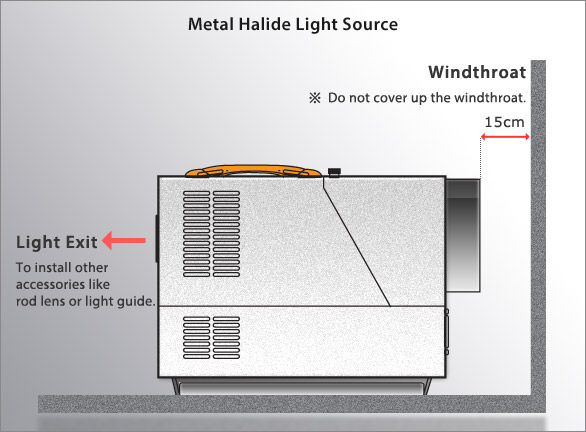

| Cooling |
Air Cooling With fan |
| Operating Enviroment |
Temperature 5~35℃ Humidity 70% or less |

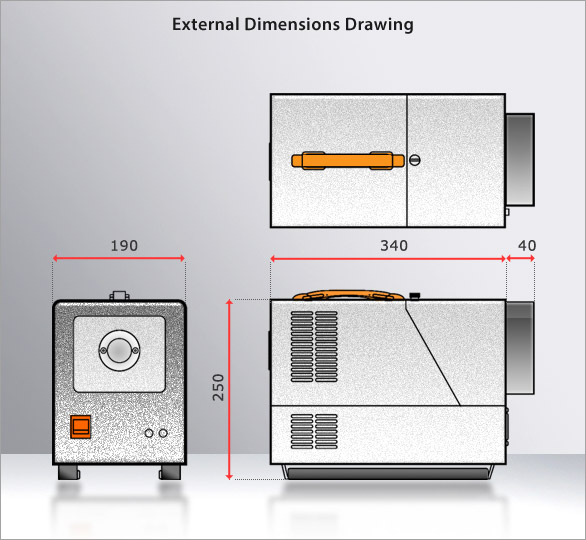

| Size |
W185 H230﹙扣除橡膠腳 15﹚
D334﹙扣除突起部59﹚ |
| Weight |
About 8.5kg |
